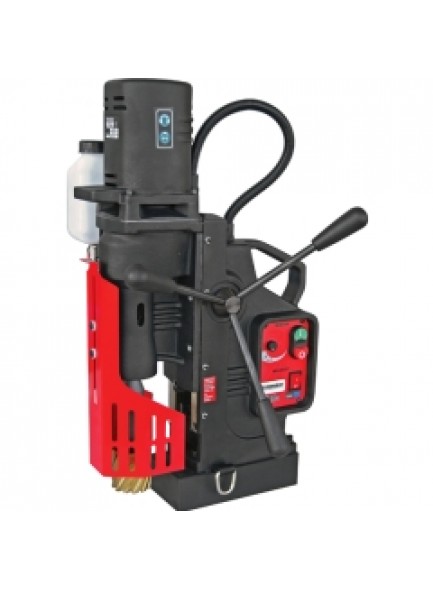

HOLEMAKER – PRO 75 MAGNETIC BASE DRILL 1650W / VARI RPM

CAPACITY: 75MM DIA X 110MM DOC (3MT – 32MM)

HMPRO75 – HOLEMAKER PRO 75 MAGNETIC BASE DRILL 1800W / VARI

RPM

• The Holemaker PRO 75 Is A Versatile, Multi-Purpose Machine, Equipped With A #3 Morse Taper Spindle.
• The 2 Speed Gearbox With Electronic Variable Speed, Electronic Speed Stabilization System (ESSS), And Motor Soft Start Feature Makes This Machine Ideal For Tapping.
• With A Large Cutting Capacity Of 75mm Diameter And 75mm Depth (110mm With Optional Arbor) Using Holemaker Cutters, This Machine Will Suffice For Most Holemaking Requirements.
• Other Standard Features Include Gravity Feed Coolant System & Left Or Right Hand Feed Handle Operation.
• Coolant Tank Capacity: 450ml

 *The Holemaker PRO 75 Is Also Available With A Swivel Base System.

SPECIFICATIONS:

 Capacity (Diameter – Max)           75mm

Capacity (Depth Of Cut – Max)    110mm

Capacity ( Twist Drills)    #3 Morse Taper 32mm

Motor Input Power         1800 Watt

Motor Output Power     1650 Watt

Gearbox 2 Speed With Electronic Variable Speed 80-160; 210-420 RPM And Motor Soft Start Feature

Magnet Dead Lift             19500nm

Weight 27.0kg
