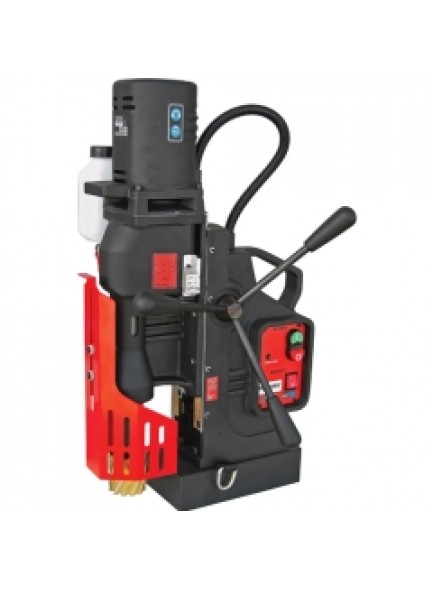

HOLEMAKER – PRO110 MAGNETIC BASE DRILL 1650W / 4-SPEED

HMPRO110 – HOLEMAKER PRO 110 MAGNETIC BASE DRILL 1650W /

4-SPEED

• The Holemaker PRO 110 Is An Extra Heavy Duty, Large Capacity Machine Capable Of Producing Burr-Free Holes Up To 110mm Diameter By 110mm Depth.

• 1650w Motor With 4-Speed Mechanical Gearbox Produces Superb Torque Through Gear Reduction In Low Speeds.

• #4 Morse Taper Spindle Bore For Use With Taper Shank Drills.

• Supplied Complete With Side Mounted Coolant System And Arbor For Use With 3/4” Shank Holemaker Cutters Up To 75mm Diameter By 75mm Depth Of Cut.

• Optional Arbor To Take 1-1/4″ Shank Cutters Up To 110mm Diameter By 110mm Depth. 1L Pressure Feed Coolant Bottle Available.

SPECIFICATIONS

Capacity (Diameter – Max) 110mm

Capacity (Depth Of Cut – Max) 110mm

Capacity ( Twist Drills) #4 Morse Taper 47mm

Motor Input Power 1800 Watt

Motor Output Power 1650 Watt

Gearbox 4 Speed Heavy Duty 85/135/160/250RPM

Magnet Dead Lift 22000nm

Weight 31.0kg
