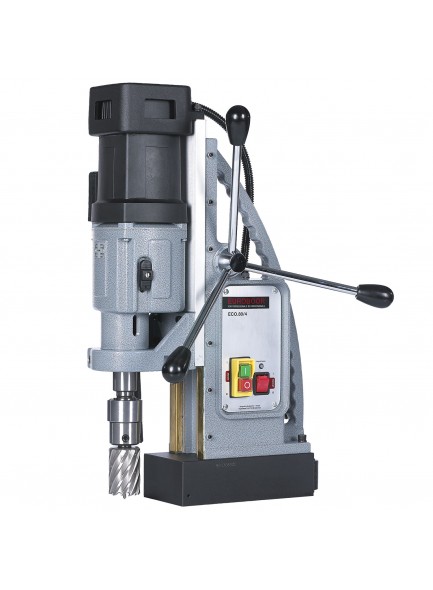

EUROBOOR ECO.80/4 MAGNETIC BASE DRILLING MACHINE – 12MM TO 80MM DIA
$4,527.42
| Brand: | Euroboor |
| Product Code: | ECO.80/4 |
| Availability: | In Stock |
Add to cart
Buy Now
MAGNETIC DRILLING MACHINE FOR HOLES UP TO 80 MM
The ECO.80/4 Is A Solid Bruiser With Morse Taper 3 Connection. Thanks To The 4-Speed Gear Box This No-Nonsense Magnetic Drilling Machine Is Perfect For Challenging Twist Drilling Up To Ø 31,75mm.
COMPLETE DELIVERY
| 1 Magnetic Drilling Machine | 1 Morse Taper 3 |
| 1 ABS Carrying Case | 1 Morse Taper 3 Drill Drift |
| 1 Drill Guard | 1 Safety Chain/Strap |
| 3 Handles | 1 Bottle Of Cutting Oil (200 Ml) |
| 1 Hex Key 2.5 Mm | 1 User Manual |
| 1 Hex Key 4 Mm | 1 Set Of Safety Hearing Protection Ear Plugs |
| 1 Hex Key 5 Mm | 1 Pair Of Safety Goggles |
| 1 Wrench 8 | 1 Pair Of Safety Gloves |
| 1 Lubrication System |
| ANNULAR CUTTERS | Ø 12 – 80 Mm |
| TWIST DRILLS | Ø 1 – 31,75 Mm |
| LENGTH | 365 Mm |
| WIDTH | 310 Mm |
| HEIGHT | 510 – 710 Mm |
| STROKE | 260 Mm |
| WEIGHT | 28 Kg |
| MAGNET (L X W X H) | 220 X 110 X 64 Mm |
| MAGNETIC FORCE | 3000 Kg |
| MOTOR POWER | 1700 W |
| TOTAL POWER | 1800 W |
| SPEED (No Load) | (I) 200 Min¯¹ |
| (II) 320 Min¯¹ | |
| (III) 415 Min¯¹ | |
| (IV) 650 Min¯¹ | |
| SPEED (Load 1700 W) | (I) 150 Min¯¹ |
| (II) 200 Min¯¹ | |
| (II) 275 Min¯¹ | |
| (IV) 400 Min¯¹ | |
| SPINDLE | MT3 ,19.05 Mm Weldon |
| VOLTAGE | 110 – 120 V / 50-60 Hz |
| 220 – 240 V / 50-60 Hz |
