Euroboor ECO.32-T Magnetic Base Drill, 32mm – Variable Speed

Euroboor ECO.32-T Magnetic Base Drill, 32mm – Variable Speed

$2,329.71

$2,329.71

Quantity
Add to cart
Buy Now

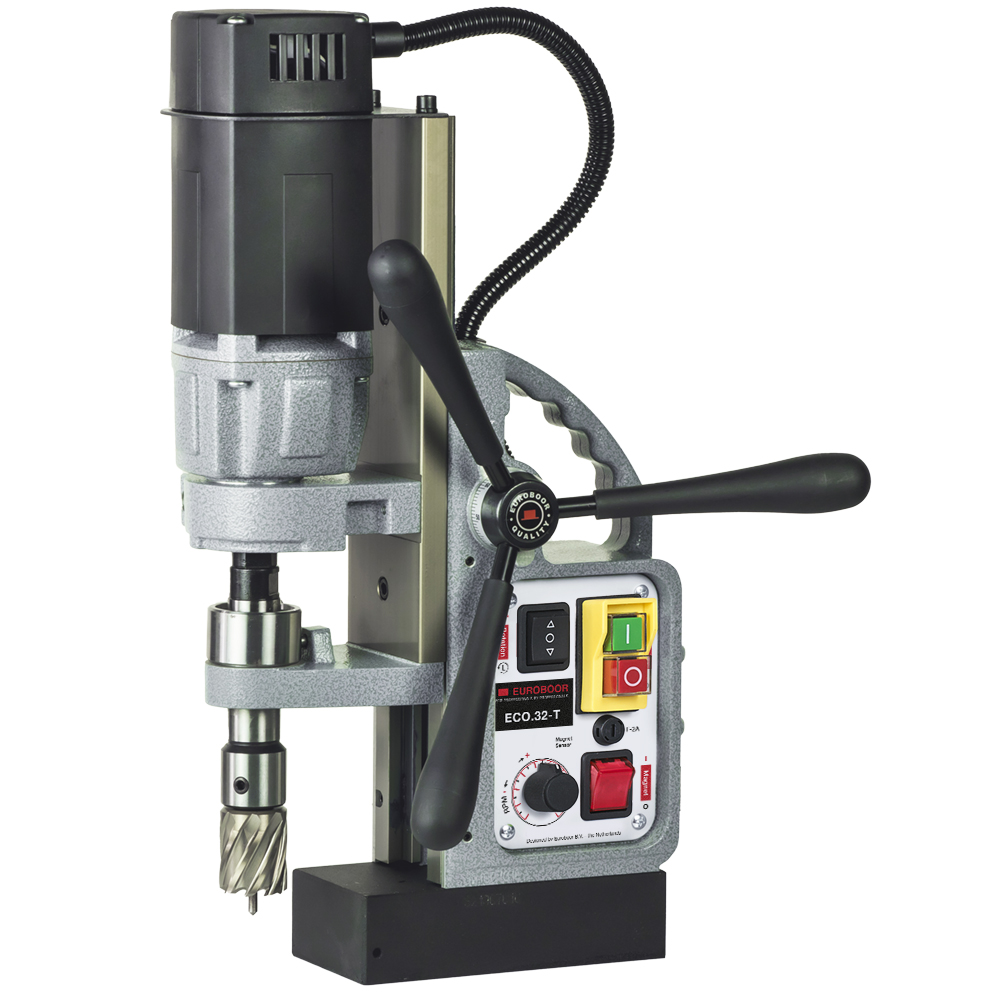

Euroboor ECO.32-T
Magnetic drilling machine Ø 12 – 32mm / 11kg
Twist Drills Ø 1 – 13mm
Countersinking Ø 10 – 40mm
Tapping Ø M3 – M12

Need to drill and tap a 32 mm hole at a great height?

The ECO.32-T is designed to complete your tailor-made work at all altitudes.

THE BEST ALL-ROUND DRILL & TAP MACHINE IN ITS RANGE!

Need to drill and tap a 32 mm hole at a great height?

The ECO.32-T is designed to complete your tailor-made

work at all altitudes.

• Ideal for drilling and tapping with one machine

• Variable speed & reverse gear box

• Electronically adjustable rotating speed

• Fits a 1/2″ chuck with adaptor (sold separately)

Technical data

Annular cutting Ø 12 – 32 mm
Twist drilling Ø 1 – 13 mm
Countersinking Ø 10 – 40 mm
Tapping Ø M3 – M12
Length 320 mm
Width 210 mm
Height 370 – 512 mm
Stroke 150 mm
Weight 11 kg*
Magnet (l x w x h) 160 x 80 x 42 mm
Magnetic force 1,500 kg
Motor power 1,000 W
Total power 1,050 W
Speed (no load) 775 rpm
Speed (load 1,000 W) 440 rpm
Spindle (Weldon) 19.05 mm
Voltage 220 – 240 V / 50 – 60 Hz
