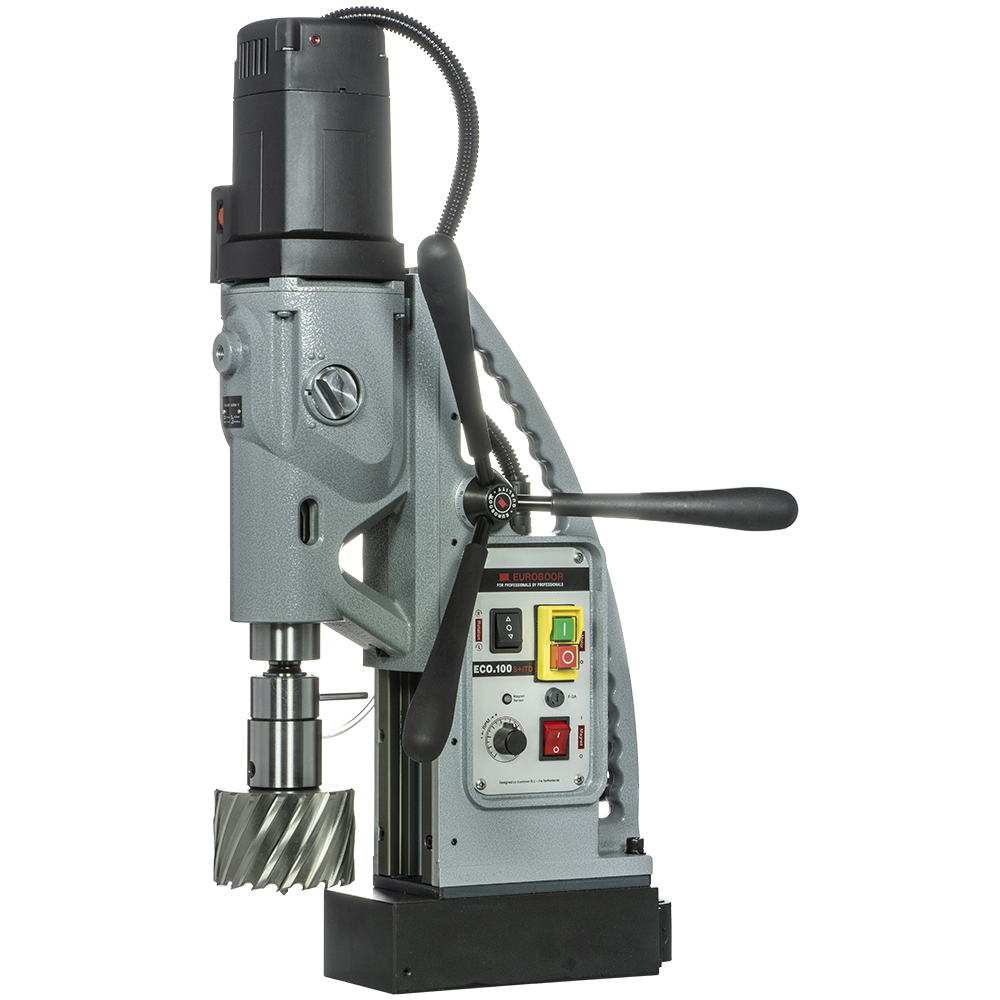

Euroboor ECO.100S+/TD Magnetic Base Drill – 4-Speed 100mm

Magnetic drilling machine
Ø 12 – 100 mm / 31 kg

The portable Euroboor ECO.100S+/TD magnetic core drilling machine has an unique swivel base, which allows the magnet to rotate 30º both ways and slide 15 – 20 mm forwards and backwards.

This magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suitable for tapping. It not only benefits from an oil lubricated gearbox, but also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement.

The lifespan is considerably longer and you avoid high maintenance costs.

This machine features:

Precise positioning swivel base, rotate the machine 30˚ both ways and slide 15-20 mm forward and backwards

Four-speed oil-lubricated gearbox

Particularly suitable for tapping

Morse Taper 3 spindle with integrated tool cooling and lubrication

Right/left rotating

Electronic speed adjustment

Torque control on motor house

Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer

Reduced risk of damaging machine, tools and workpieces and hurting operator

Suitable for use in areas and workplaces where power supply is of less quality

Reduced risk of armature damage

Reduced risk of control unit damage

Timely service notification to avoid additional costs by unexpected downtime or unnecessary part replacement
