- DEWALT 701 W – TOP HANDLE JIGSAW. Ask for a Quote
DEWALT 701 W – TOP HANDLE JIGSAW. Ask for a Quote
Categories Cutting, DeWalt, Electric Power Tools
Tag DEWALT 701 W - TOP HANDLE JIGSAW.

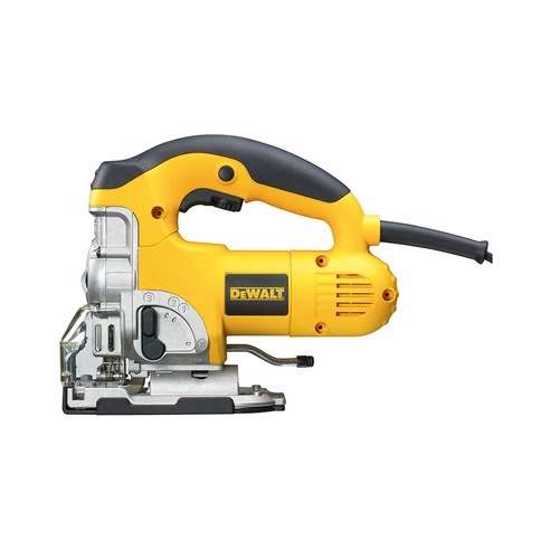

DEWALT 701 W – TOP HANDLE JIGSAW.
Powerful 701 Watt motor with variable speed delivers fast cutting action up to 3100 strokes per minute
Quick and easy patented keyless blade change system accepts T- shank blades
Patented anti-vibration counterbalance mechanism and rubber grip provide smooth operation.
OVERVIEW
- Powerful 701 Watt motor with variable speed delivers fast cutting action up to 3100 strokes per minute
- Quick and easy patented keyless blade change system accepts T- shank blades
- Patented anti-vibration counterbalance mechanism and rubber grip provide smooth operation
- 4-position pendulum action controls the aggressiveness or smoothness of cuts
- Tool free adjustable shoe with anti scratch cover bevels to 45 degrees in both directions
- Full wave electronic speed control with feedback ensures that blade speed is maintained under any load for a consistent finish across all materials
- Soft start ensures accuracy at cut start
- Tapered saw blade roller to control blade deflection at maximum depth of cut
- Switchable dust blower keeps line of cut clear of chips
- Modular component design for trouble free servicing
- Compatible with DEWALT flush cutting blade DT2074, for cutting flush to an edge.
-
SPECIFICATIONS
-
Power Input 701 Watts Power Output 445 Watt No Load Stroke Rate 0-3100 spm Stroke Length 26 mm Bevel Capacity 45 ° Max. Cutting Capacity [Wood] 130 mm Max. Cutting Capacity [Steel] 12 mm Max. Cutting Capacity [Non Ferrous Metal] 30 mm Weight 2.8 kg Length 250 mm Height 210 mm Hand/Arm Vibration – Cutting Wood 6.0 m/s² Uncertainty K 1 (Vibration) 2.0 m/s² Hand/Arm Vibration – Steel 5.0 m/s² Uncertainty K 2 (Vibration) 1.5 m/s² Sound Pressure 86 dB(A) Sound Pressure Uncertainty 2.8 dB(A) Sound Power 97 dB(A) Sound Power Uncertainty 2.8 dB(A) Battery chemistry Voltage Battery Capacity Max. Depth of Cut [Wood] Max. Depth of Cut [Metal] Hand/Arm Vibration – Cutting boards
